Product Features
Reject cutting:The coating performance is stable; Suitable for high temperature environments and less prone to wear and tear;
Extremely Sharp:Modern grinding machine equipment high-precision grinding knives, fully grinding the edges without any slight flaws, cutting iron like mud;
Powerful:It can directly perform the entire process from rough milling to fine milling without the need for tool replacement;
Farewell to Sticky Knife:35 ° Spiral Angle& Large core diameter design significantly improves production efficiency;
Suitable for processing materials: carbon steel, alloy steel, cast iron, and high hardness steel;
Product Parameters

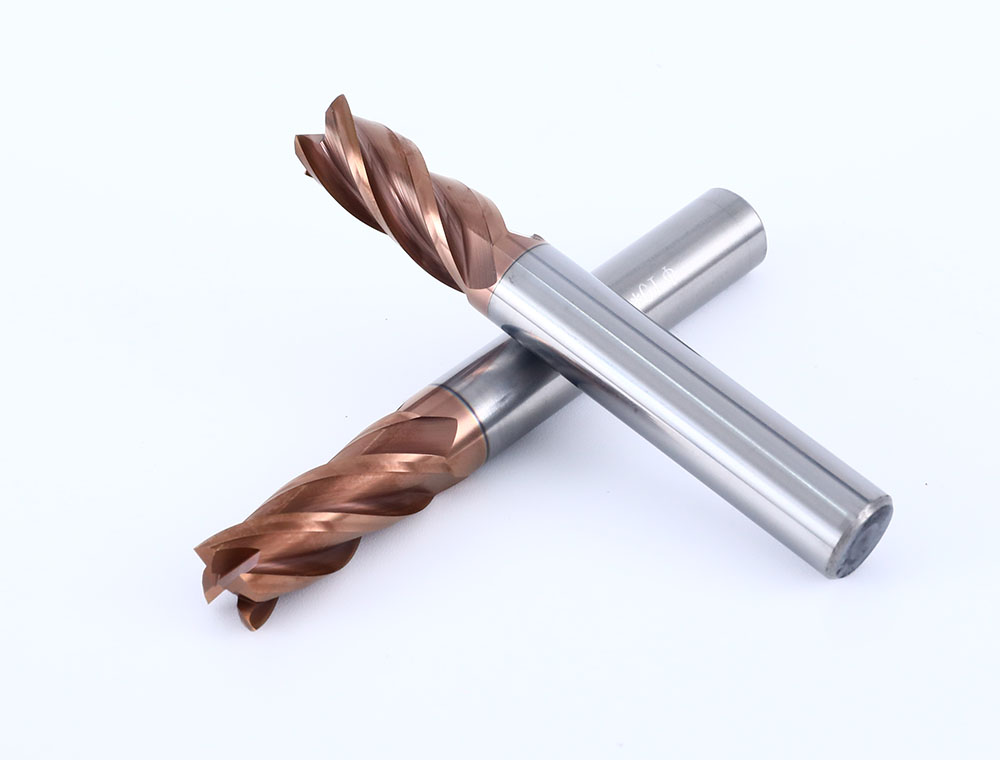

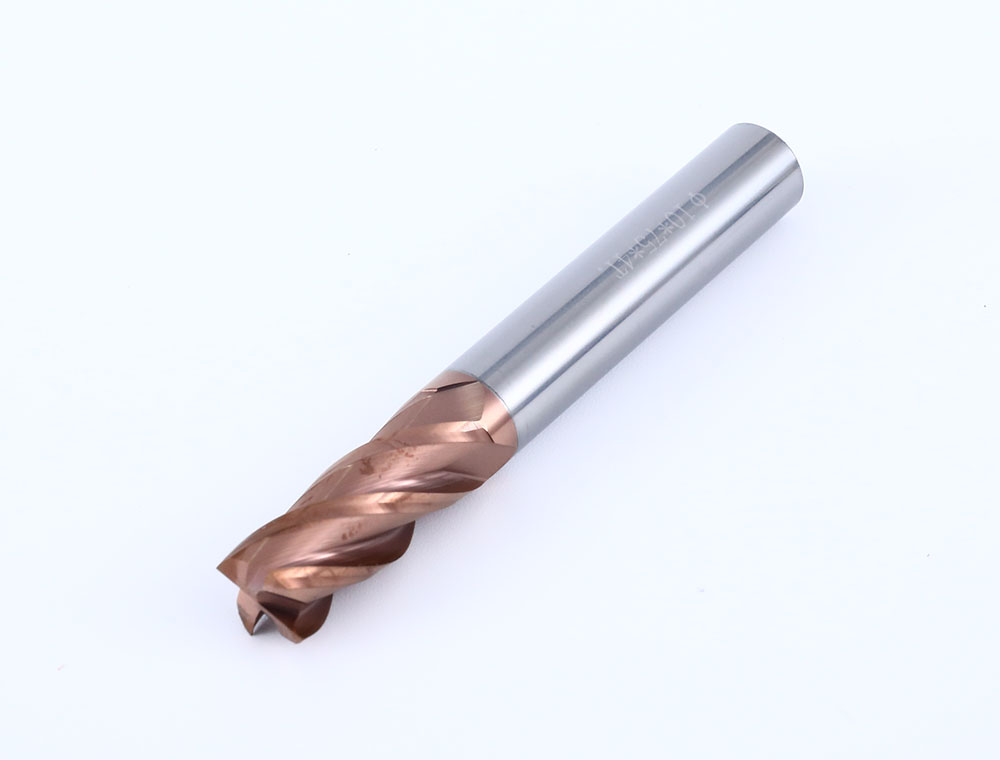

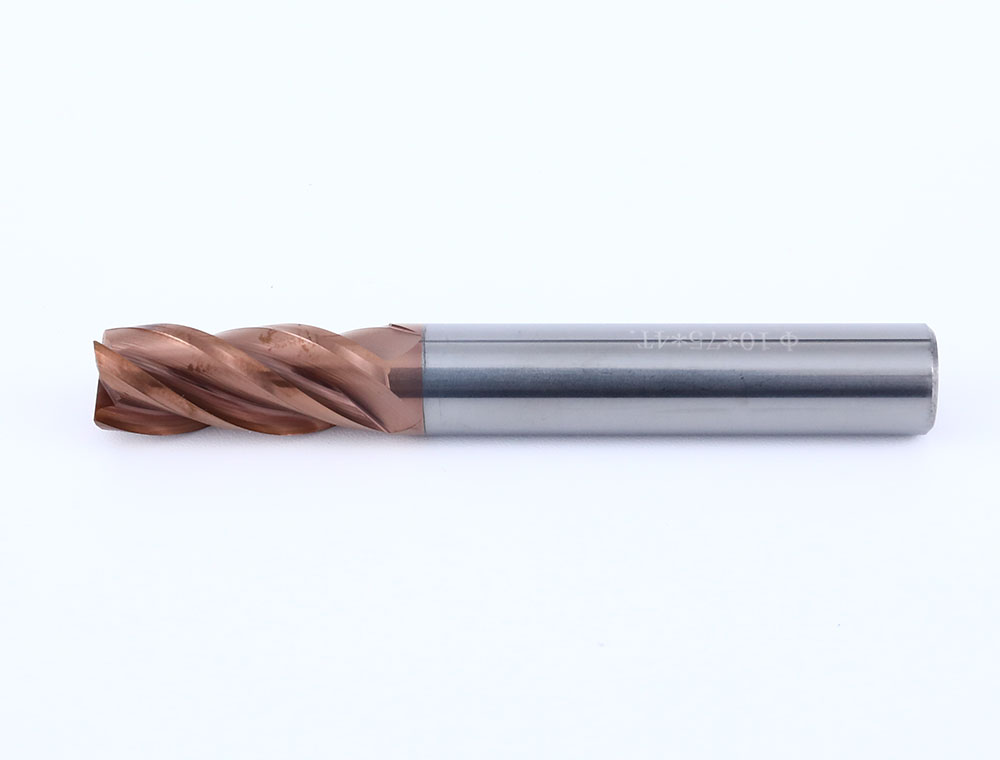

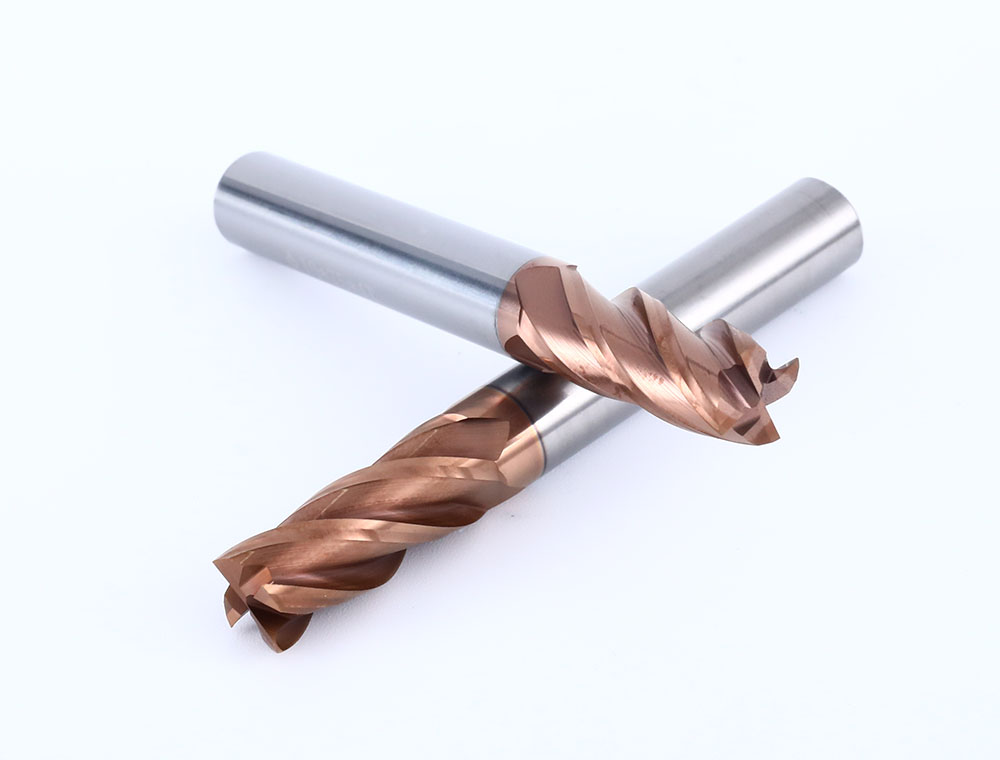

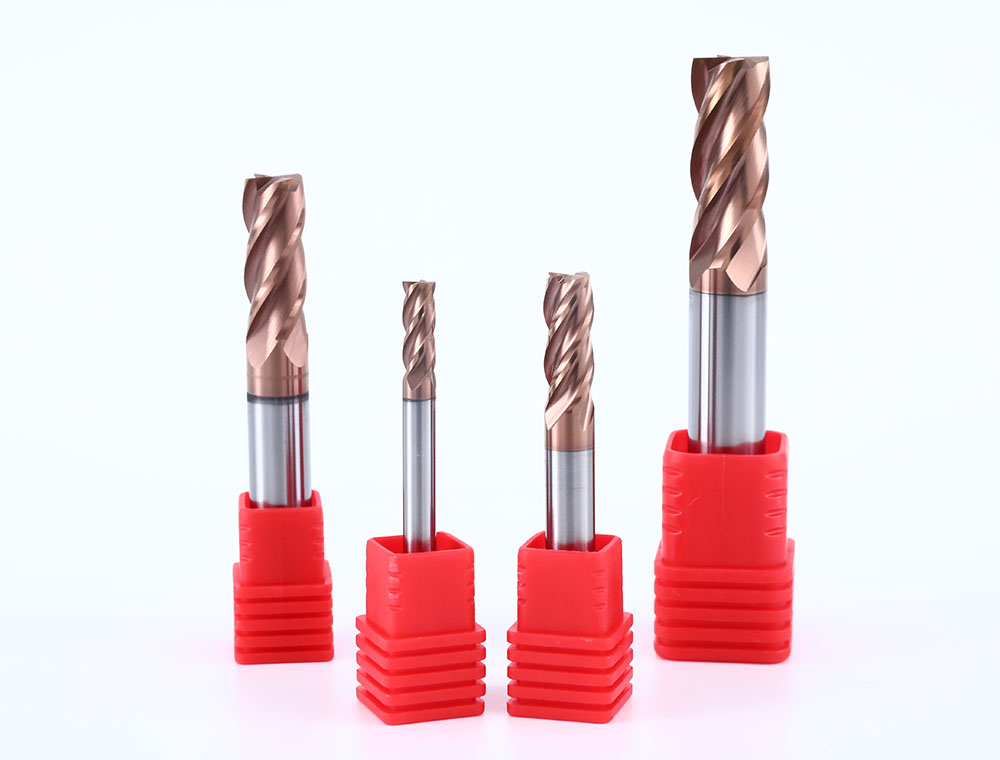

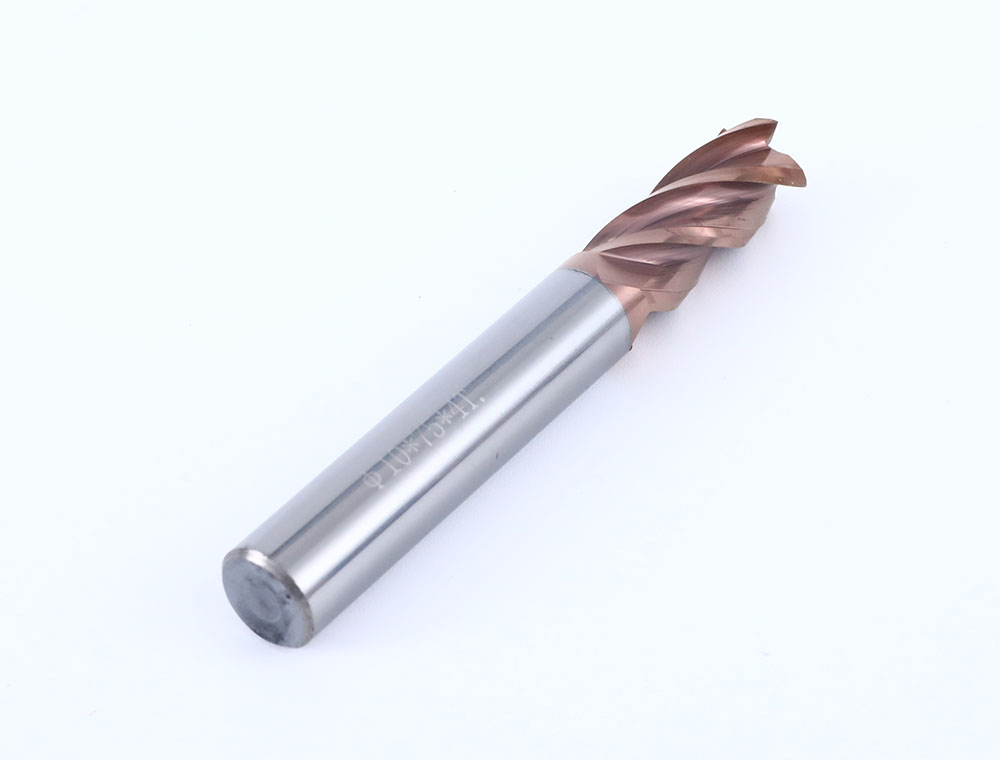

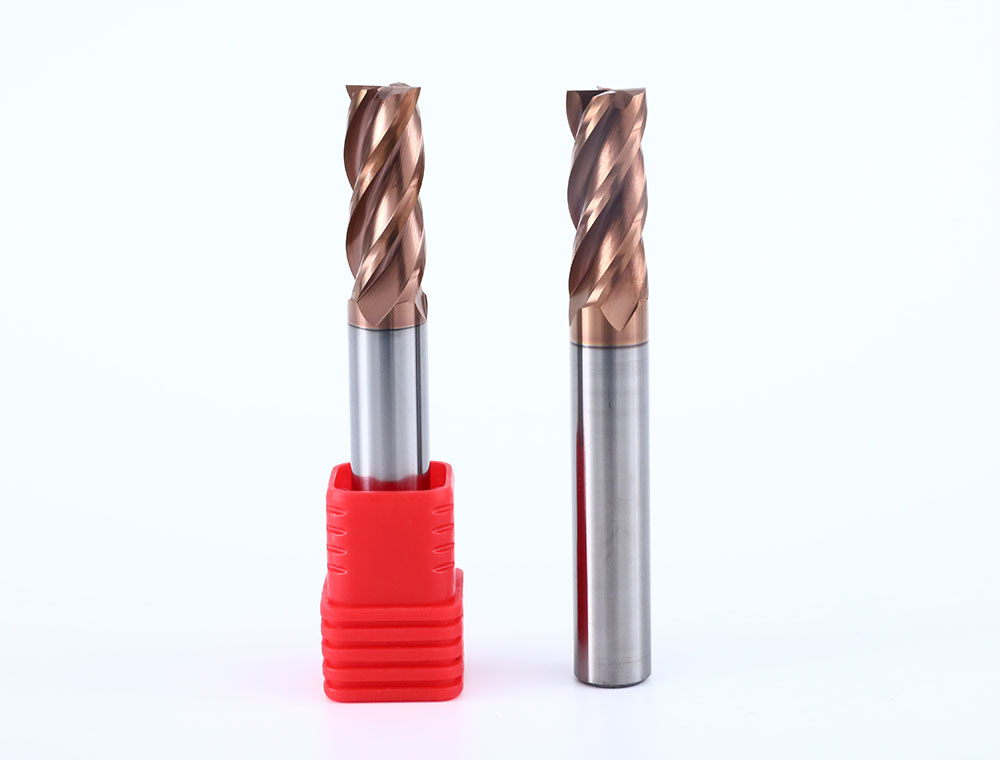

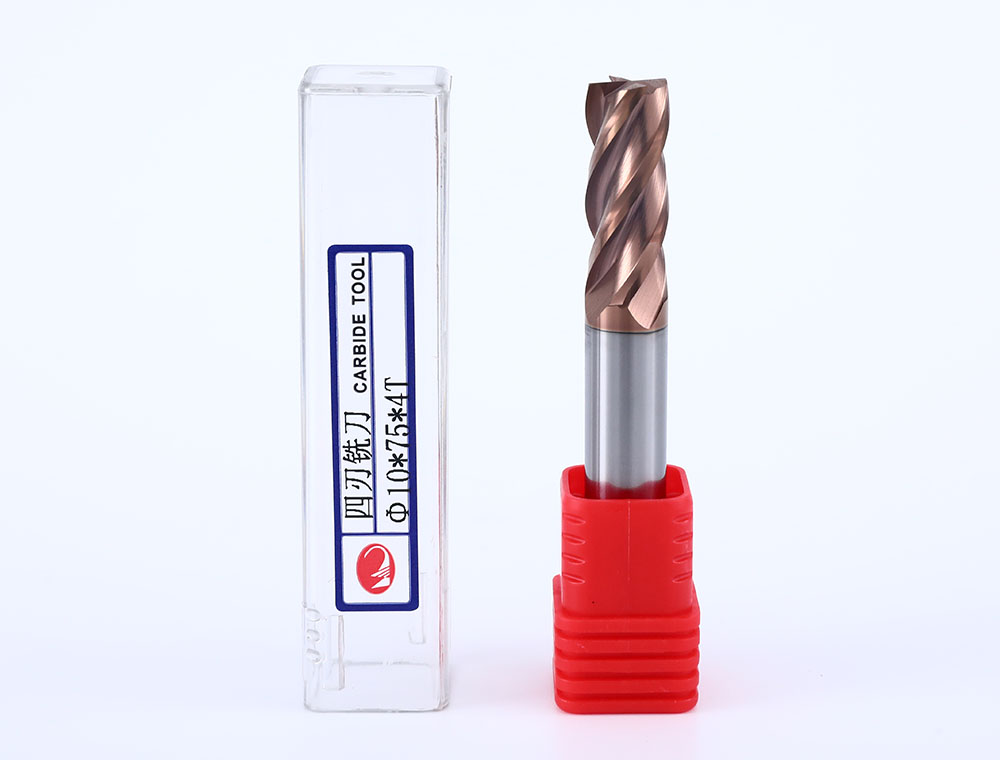

Name: 4-blade tungsten steel milling cutter | Cutting hardness: HRC55° |
Coating: Nano composite coating (for steel) | Spiral angle: 35° |
Product Name | Blade diameter | Blade length | Stem diameter | Length |
Φ1×50 | D1 | 3 | D4 | 50L |
Φ1.5×50 | D1.5 | 4 | D4 | 50L |
Φ2×50 | D2 | 6 | D4 | 50L |
Φ2.5×50 | D2.5 | 8 | D4 | 50L |
Φ3×50 | D3 | 8 | D4 | 50L |
Φ3.5×50 | D3.5 | 10 | D4 | 50L |
Φ4×50 | D4 | 10 | D4 | 50L |
Φ4×75 | D4 | 15 | D4 | 75L |
Φ4×100 | D4 | 20 | D4 | 100L |
Φ5×50 | D5 | 13 | D5 | 50L |
Φ6×50 | D6 | 15 | D6 | 50L |
Φ6×75 | D6 | 25 | D6 | 75L |
Φ6×100 | D6 | 30 | D6 | 100L |
Φ8×60 | D8 | 20 | D8 | 60L |
Φ8×75 | D8 | 25 | D8 | 75L |
Φ8×100 | D8 | 35 | D8 | 100L |

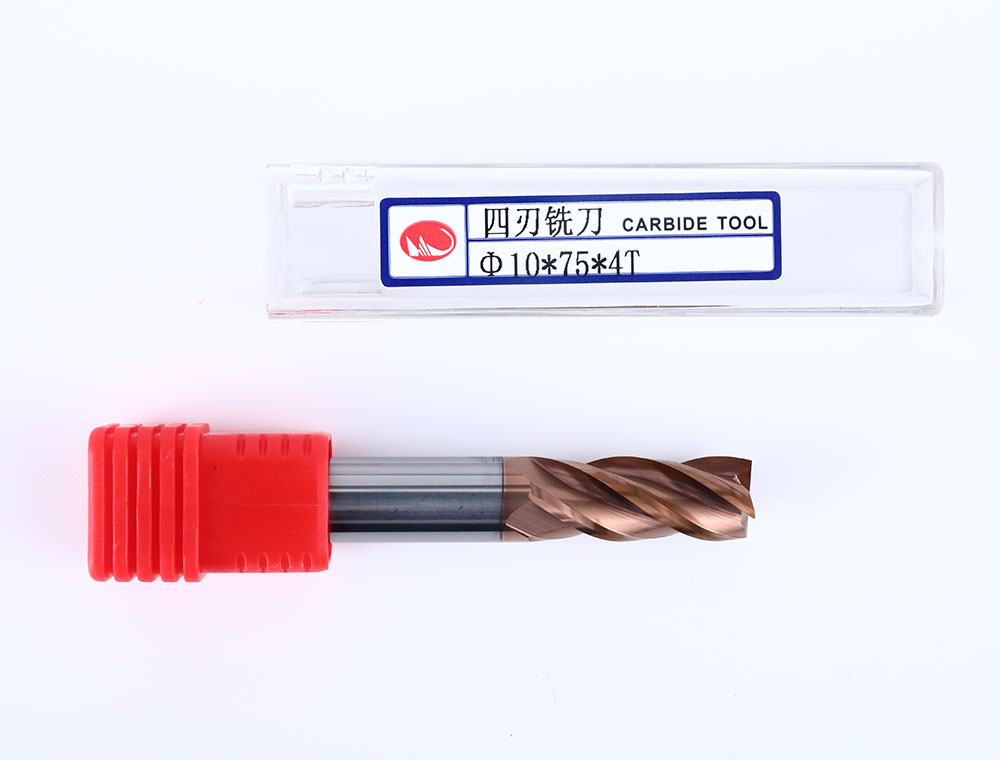

Φ10×75 | D10 | 25 | D10 | 75L |
Φ10×100 | D10 | 40 | D10 | 100L |
Φ12×75 | D12 | 30 | D12 | 75L |
Φ12×100 | D12 | 45 | D12 | 100L |
Φ14×80 | D14 | 35 | D14 | 80L |
Φ14×100 | D14 | 40 | D14 | 100L |
Φ16×100 | D16 | 40 | D16 | 100L |
Φ18×100 | D18 | 40 | D18 | 100L |
Φ20×100 | D20 | 40 | D20 | 100L |
Φ6×150 | D6 | 35 | D6 | 150L |
Φ8×150 | D8 | 50 | D8 | 150L |
Φ10×150 | D10 | 55 | D10 | 150L |
Φ12×150 | D12 | 60 | D12 | 150L |
Φ14×150 | D14 | 60 | D14 | 150L |
Φ16×150 | D16 | 70 | D16 | 150L |
Φ18×150 | D18 | 70 | D18 | 150L |
Φ20×150 | D20 | 70 | D20 | 150L |
Φ7×60 | D7 | 20 | D8 | 60L |
Φ9×75 | D9 | 20 | D10 | 75L |
Φ10×75 | D10 | 30 | D10 | 75L |
Φ11×75 | D11 | 25 | D12 | 75L |
Φ13×100 | D13 | 40 | D14 | 100L |
Φ15×100 | D15 | 40 | D16 | 100L |
